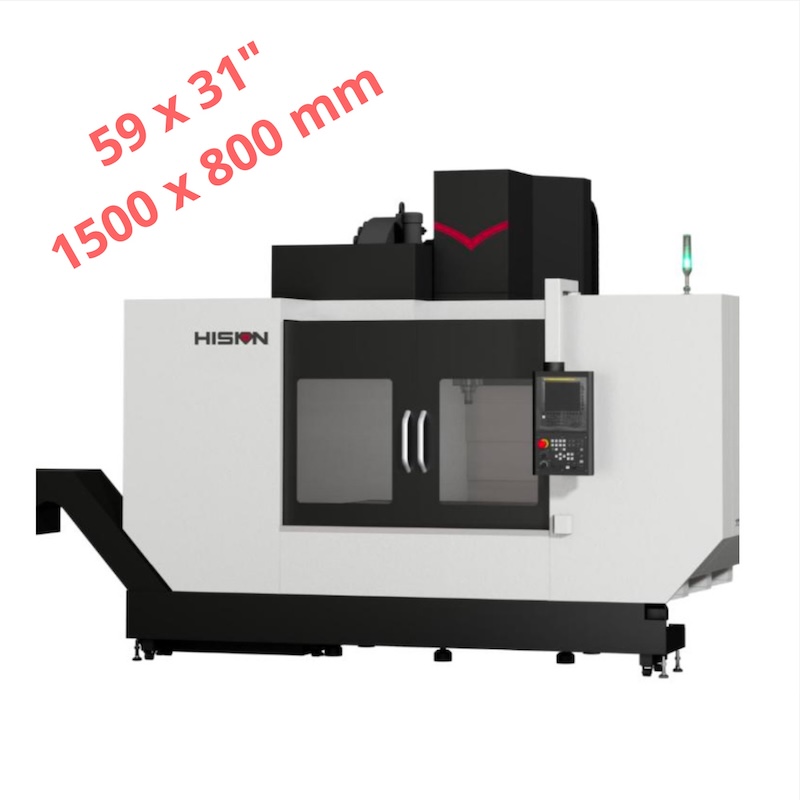

The Hision V15-50 (VMC1580II) is a 50-taper vertical machining center with 59.1 × 31.5 × 31.5 in (1500 × 800 × 800 mm) of travel and a 1,500 kg table load. The price covers the standard machine below; taper, control, probing and 4th-axis options are added in the online configurator.
The V15-50 is built for heavy cutting: a gear-driven BT50 spindle with 607 Nm (448 ft-lbf) of peak torque takes deep cuts in steel and cast iron at low speed, where a 40-taper machine runs out of torque. Mould blocks, large weldments and multi-part fixtures fit on the 1700 × 800 mm table. Built on the high-volume Haitian Precision line, it costs well below American and Korean 50-taper machines with a 60 × 32 in envelope, and at 12,000 kg it is heavier than most of them. Unbranded Chinese machines are cheaper; the V15-50 comes from a large manufacturer with a factory warranty.
| Travel X / Y / Z | 59.1 × 31.5 × 31.5 in (1500 × 800 × 800 mm) |
| Spindle nose to table | 7.9–39.4 in (200–1000 mm) |
| Table | 66.9 × 31.5 in (1700 × 800 mm), 5 T-slots 22 mm × 150 mm |
| Max table load | 3,307 lb (1,500 kg) |
| Spindle | BT50, gearbox, 6,000 rpm |
| Spindle power (cont / max) | 20.1 / 24.8 hp (15 / 18.5 kW) |
| Spindle torque (cont / max) | 271.4 / 447.7 ft-lbf (368 / 607 Nm) |
| Rapids X / Y / Z | 945 / 945 / 787 ipm (24 / 24 / 20 m/min) |
| Max cutting feed X / Y / Z |
| 472 / 472 / 394 ipm (12 / 12 / 10 m/min) |
| Tool changer | 24+1, arm type, 4 s tool to tool |
| Max tool | Ø 4.3 in (110 mm), Ø 7.9 in (200 mm) with adjacent pockets empty, 13.8 in (350 mm) long, 40 lb (18 kg) |
| Control | Fanuc 0i-MF Plus, β-series servo and spindle motors |
| Machine weight | 26,455 lb (12,000 kg) |
| Footprint L × W × H | 16.7 × 10.2 × 11.8 ft (510 × 310 × 360 cm) |
| Power / air | 220 V, 3-phase, 60 Hz / 73–102 psi (0.5–0.7 MPa) |
Full option list with prices — in the configurator.
