Bumblebee DV16A, 63" x 31" (1600 x 800mm) CNC Vertical Machining Center

Made to order

Bumblebee DV16A, 63" x 31" (1600 x 800mm) CNC Vertical Machining Center

Name: Bumblebee DV16A, 63" x 31" (1600 x 800mm) CNC Vertical Machining Center
Brand: BUMBLEBEE
SKU: DV16A
Price: 141348.11 CAD
Availability: InStock

DV16AMade to order

Table size: 71" x 30" (1800 x 760mm). BBT40 (dual contact) or CAT40 spindle taper, 8,000 RPM belt drive or 12,000 RPM direct drive spindle, Fanuc 0i-MF Plus controller with a 10.4" or 15" display. Build your exact configuration in our online configurator.

From CA$134,617.25 excl. taxes

Retail price as of 08.25.2026

Configure and View

Product Attributes

Technical Description

Reviews

X Axis Travel, mm

1600

Y Axis Travel, mm

800

Z Axis Travel, mm

700

Table Length, mm

1800

Table Width, mm

760

X Axis Travel, inch

Y Axis Travel, inch

31.5

Z Axis Travel, inch

27.6

Table Length, inch

70.9

Table Width, inch

29.9

Spindle, RPM

12'000, 8'000

CNC Controller

FANUC

Tool Changer Type

24+1 (Arm)

Brand

BUMBLEBEE

Item type

VMC

Technical Description

The Bumblebee DV16A is a 40-taper vertical machining center with 63.0 × 31.5 × 27.6 in (1600 × 800 × 700 mm) of travel. The price covers the standard machine below; spindle, taper, coolant, probing and 4th-axis options are added in the online configurator.

Why the DV16A

The DV16A carries a 71 × 30 in (1800 × 760 mm) table rated for 3,307 lb (1,500 kg) — room for long fixtures, several vises or a 4th axis with tailstock alongside other work. The Z axis runs on roller guideways and all three axes on ø50 mm ball screws, sized for the heavier parts this table takes.

The base spindle is a belt-driven BBT40, 8,000 rpm with 52.5 / 130 Nm; a 12,000 rpm direct drive spindle is offered as an option. The Fanuc 0i-MF Plus is the 3A system with the fine surface package and 1,500-block look-ahead. The Z axis has no counterweight and lifts automatically on power loss or emergency stop.

Key Specifications

Travel X / Y / Z	63.0 × 31.5 × 27.6 in (1600 × 800 × 700 mm)
Spindle nose to table	5.5–33.1 in (140–840 mm)
Spindle center to column	31.5 in (800 mm)
Table	70.9 × 29.9 in (1800 × 760 mm), 5 T-slots 18 mm × 125 mm
Max table load	3,307 lb (1,500 kg)
Spindle	BBT40 (dual contact), belt drive, 8,000 rpm
Spindle power (cont / max)	14.8 / 27.4 hp (11 / 20.4 kW)
Spindle torque (cont / max)	38.7 / 95.9 ft-lbf (52.5 / 130 Nm)
Rapids X / Y / Z	787 ipm (20 m/min)
Max cutting feed	394 ipm (10 m/min)
Tool changer	24+1, side-mounted, arm type, 2.4 s tool to tool, 4.4 s chip to chip
Max tool	Ø 3.1 in (78 mm), Ø 4.7 in (120 mm) with adjacent pockets empty, 11.8 in (300 mm) long, 17.6 lb (8 kg)
Positioning / repeatability (VDI/DGQ 3441)	0.012 / 0.010 mm (0.0005 / 0.0004 in)
Control	Fanuc 0i-MF Plus, Step 2, type 3A absolute
Machine weight	26,015 lb (11,800 kg)
Footprint L × W × H	16.4 × 11.5 × 10.4 ft (4990 × 3500 × 3180 mm)
Power / air	220 V, 3-phase, 60 Hz, 40 kVA / 87–116 psi (0.6–0.8 MPa)

Included in Every DV16A

Belt-driven BBT40 spindle, 8,000 rpm
24+1 side-mounted arm-type tool changer
Two coil chip conveyors along X on both sides of the table, side discharge through filter screens into a large coolant tank
Two high-power pumps: coolant, and high-flow chip flushing with water gun
Fanuc 0i-MF Plus control, 10.4" display, portable handwheel (MPG), rotating operator box
Rigid tapping
Coolant around the spindle, machining air blow, spindle air seal
Spindle oil chiller
Heat exchanger for the electrical cabinet; separated high- and low-voltage cabinets
Automatic grease lubrication (LUBE, Japan), pneumatic system
Air gun and water gun
Full enclosure, safety door interlock, work light, 3-color signal lamp, auto power-off, coolant level sensor
Transformer 220 V / 60 Hz, main switch with CSA
Oil skimmer
Leveling bolts and pads, tool kit, operation manuals

Popular Options

12,000 rpm direct drive spindle, 11 / 20.4 kW (replaces the belt-driven spindle)
Belt drive spindle with GTP gearbox, 6,000 rpm, for high torque at low speed
CAT40 spindle taper and tool changer (from BBT40)
FANUC 15" LCD package with Manual Guide i conversational programming and 2 GB data server
30 bar (435 psi) through-spindle coolant
Air conditioner for the electrical cabinet
Renishaw probing kit: TS27R tool setter with OMP40-2 or OMP60 workpiece probe
4th axis: Parkson MNC-251R CNC rotary table, ø250 mm, pneumatic brake, with DTS-251 manual tailstock

Full option list with prices — in the configurator.

Construction

Base, column, saddle and table cast iron, stress relieved three times (two thermal, one vibration aging)
Linear guideways PMI (Taiwan) – THK (Japan): X and Y ball type size 45, Z roller type size 45
Ball screws ø50 mm (pitch X 12, Y and Z 10 mm), PMI (Taiwan) – THK (Japan), directly coupled to the servo motors, fixed–pretensioned support
No counterweight on Z — high-torque servo motor holds the spindle head
Spindle VOLIS (Taiwan), synchronous belt drive; NSK (Japan) 40TAC bearings
Tool changer GIFU (Taiwan) – OKADA (China)
Spindle oil chiller HAOSCH (Germany) – WDTOPS (China); pneumatics SMC (Japan)

Control and Electrical

Fanuc 0i-MF Plus, Step 2, type 3A absolute system, with the fine surface package: AI Contour Control II+, Smooth Tolerance+, jerk control and machining condition selection, up to 1,500 blocks look-ahead
I/O on a bus board with reserved 8–16 inputs and 2–6 outputs (SCHRACK relays), expandable by add-on boards
Schneider Electric breakers and contactors, Omron relays, Igus cables, Phoenix Contact push-in terminals, heavy-duty motor connectors
Motor protection breakers on all peripheral motors, surge suppression on contactors, Z-axis lift of 0.05–0.5 mm on power loss or emergency stop, spindle and feed overload protection

Work Zone and Table

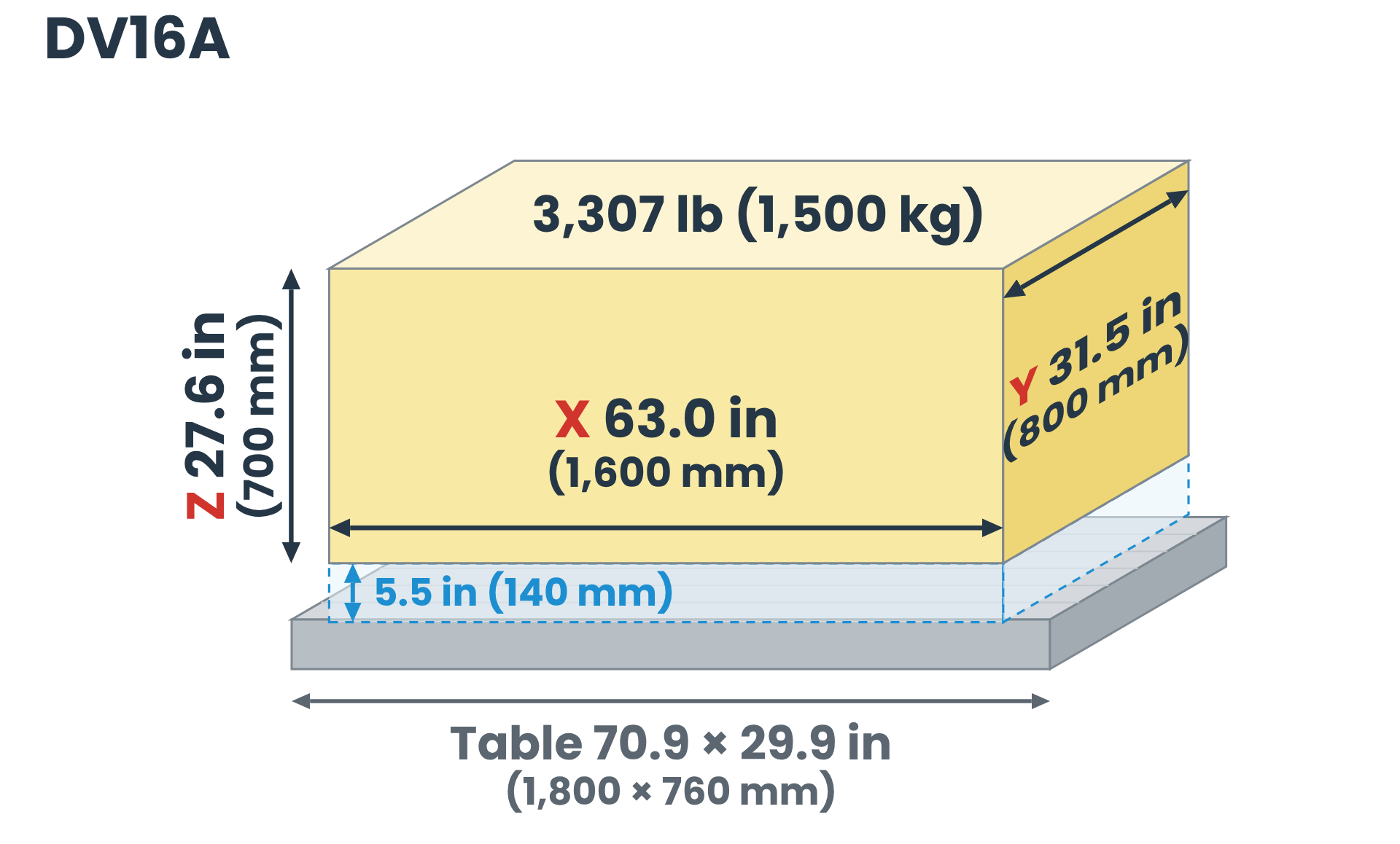

Bumblebee DV16A work zone: X, Y, Z travel, spindle nose to table distance and max table load

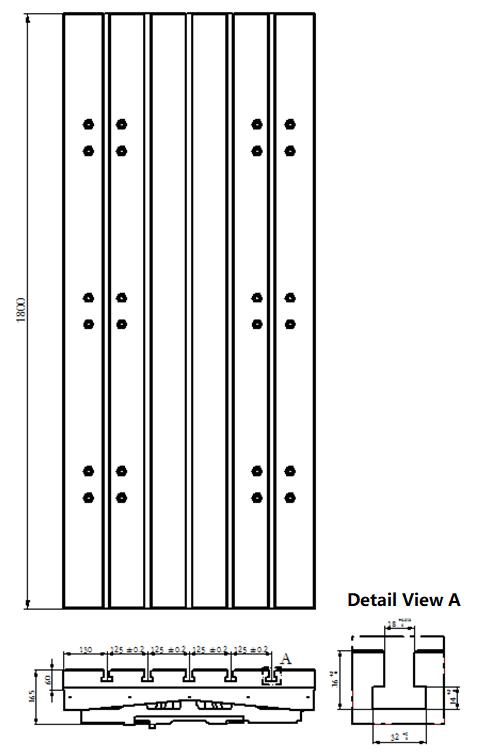

Bumblebee DV16A table drawing with T-slot dimensions

Installation Requirements

Power: 220 V, 3-phase, 60 Hz (machine supplied with a CSA-listed transformer and main switch), 40 kVA. Inlet cable and breaker size for 220 V are confirmed with the order.
Separate grounding, resistance below 3 Ω
Compressed air: 87–116 psi (0.6–0.8 MPa), up to 14 CFM (400 L/min), dew point ≤ 50 °F (10 °C); an air dryer is recommended
Coolant tank: 132 gal (500 L)
Ambient 41–95 °F (5–35 °C), 68 ± 4 °F (20 ± 2 °C) recommended for accuracy; humidity below 75 %
Consumables: LUBE LHL-X100-7 grease cartridge; ISO VG32 hydraulic oil

Layout, foundation and shipping drawings are available on request.

Other Sizes

Smaller: Bumblebee DV11A — 43.3 × 23.6 × 23.6 in (1100 × 600 × 600 mm) travel
Shorter table: Bumblebee DV14A — 55.1 × 31.5 × 27.6 in (1400 × 800 × 700 mm) travel
