Table size: 50" x 24" (1280 x 600mm). BBT40 (dual contact) or CAT40 spindle taper, 10,000 or 12,000 RPM direct drive spindle, Fanuc 0i-MF Plus controller with a 10.4" or 15" display. Build your exact configuration in our online configurator.
The Bumblebee DV11A is a 40-taper vertical machining center with 43.3 × 23.6 × 23.6 in (1100 × 600 × 600 mm) of travel. The price covers the standard machine below; spindle, taper, coolant, probing and 4th-axis options are added in the online configurator.
The DV11A comes with a direct drive spindle as standard — no belt between motor and spindle, 52.5 / 130 Nm and 10,000 rpm, with a 12,000 rpm version as an option. The Fanuc 0i-MF Plus is the 3A system with the fine surface package and 1,500-block look-ahead, which matters on 3D surfaces and long contour programs.
The Z axis runs without a counterweight: the head is held by the servo motor and lifts automatically on power loss or emergency stop to clear the tool from the part. A chain chip conveyor with cart, spindle oil chiller and air and water guns are part of the base machine, not options.

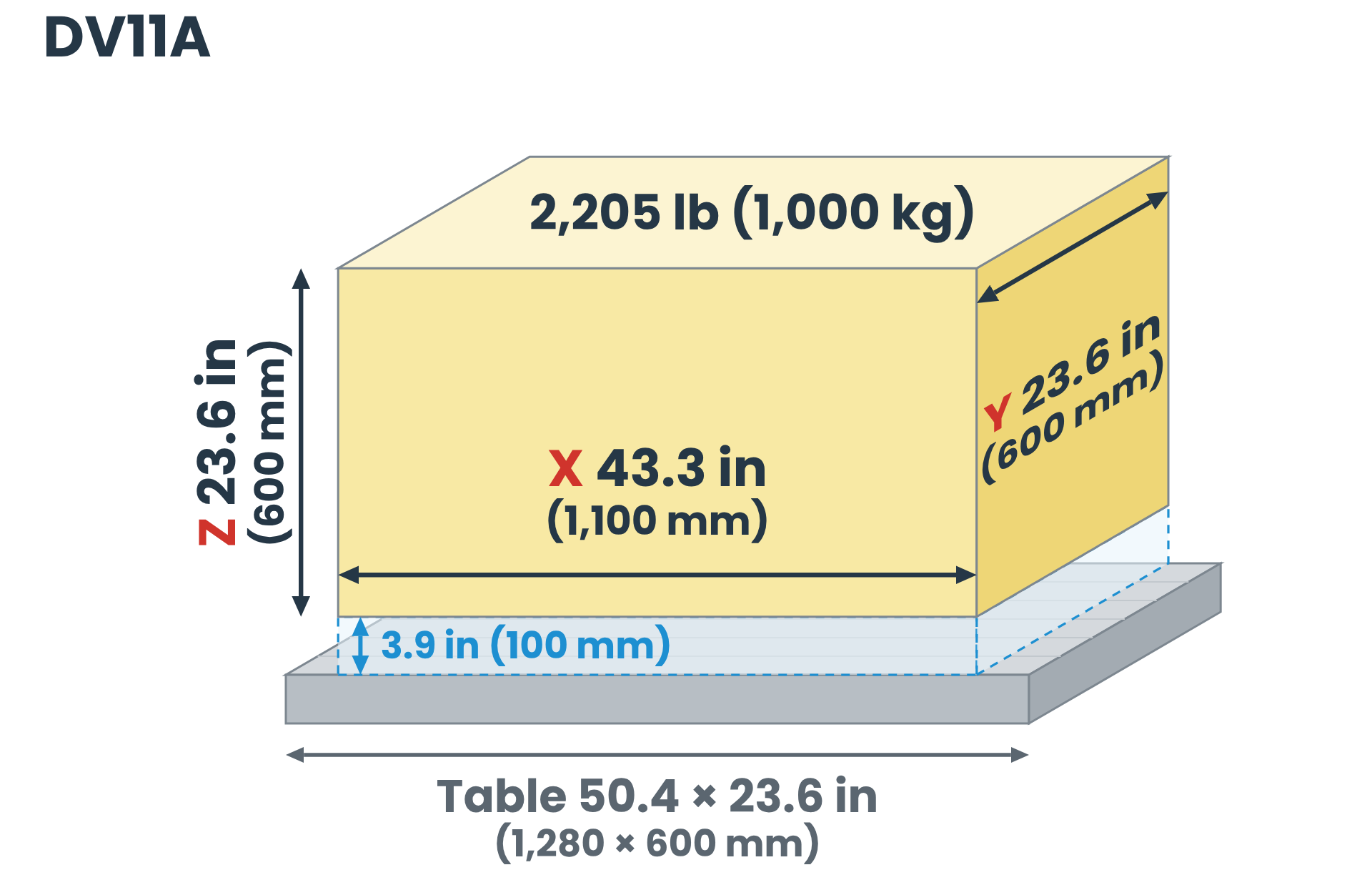

| Travel X / Y / Z | 43.3 × 23.6 × 23.6 in (1100 × 600 × 600 mm) |
| Spindle nose to table | 3.9–27.6 in (100–700 mm) |
| Spindle center to column | 24.8 in (630 mm) |

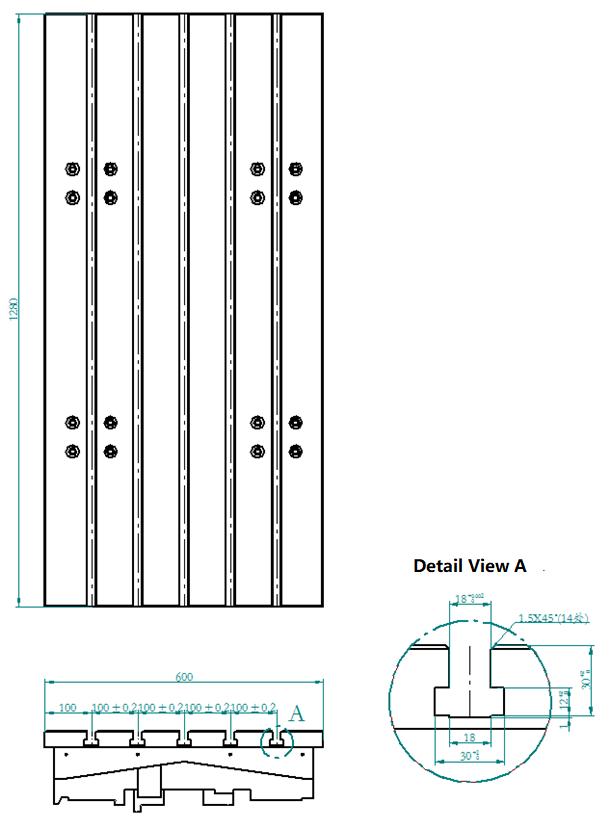

| Table | 50.4 × 23.6 in (1280 × 600 mm), 5 T-slots 18 mm × 100 mm |
| Max table load | 2,205 lb (1,000 kg) |
| Spindle | BBT40 (dual contact), direct drive, 10,000 rpm |
| Spindle power (cont / max) | 14.8 / 27.4 hp (11 / 20.4 kW) |
| Spindle torque (cont / max) | 38.7 / 95.9 ft-lbf (52.5 / 130 Nm) |
| Rapids X / Y / Z | 1,417 / 1,417 / 1,181 ipm (36 / 36 / 30 m/min) |
| Max cutting feed | 394 ipm (10 m/min) |
| Tool changer | 24+1, side-mounted, arm type, 2.4 s tool to tool, 4.4 s chip to chip |
| Max tool | Ø 3.1 in (80 mm), Ø 5.1 in (130 mm) with adjacent pockets empty, 11.8 in (300 mm) long, 17.6 lb (8 kg) |
| Positioning / repeatability (VDI/DGQ 3441) | 0.010 / 0.008 mm (0.0004 / 0.0003 in) |
| Control | Fanuc 0i-MF Plus, Step 2, type 3A absolute |
| Machine weight | 15,873 lb (7,200 kg) |
| Footprint L × W × H | 13.3 × 8.3 × 9.5 ft (4050 × 2530 × 2900 mm) |
| Power / air | 220 V, 3-phase, 60 Hz, 30 kVA / 87–116 psi (0.6–0.8 MPa) |
Full option list with prices — in the configurator.
Layout, foundation and shipping drawings are available on request.
