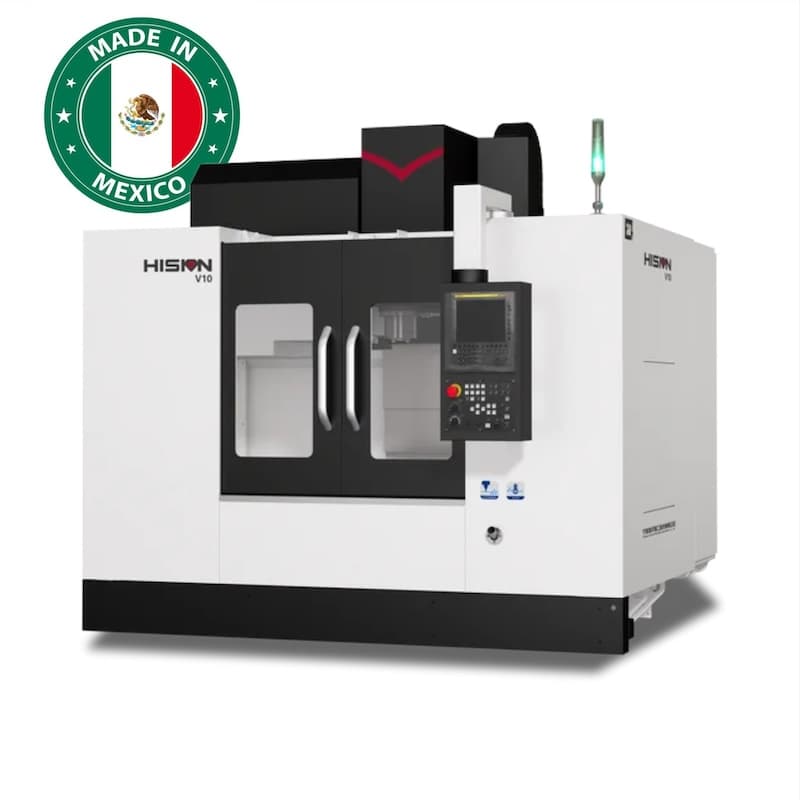

Hision V10, made in MX, 39" x 24" (1000 x 600mm) CNC Vertical Machining Center | CNCvalue.ca
Machine Standard Configuration
Direct Drive 12000 Inline Spindle
Side Mount Arm Type Tool Changer
Pneumatic System
Centralized Oil Lubrication System
External Spindle Cooling System
Internal Auger Chip Conveyor / Internal Flush
External Manual Bucket Chip Conveyor
Air gun
3-color Light, Working Light
Full enclosure with top
Standard attachment and relevant document
Door interlock
Transformer
Windows on both sides
Air tank

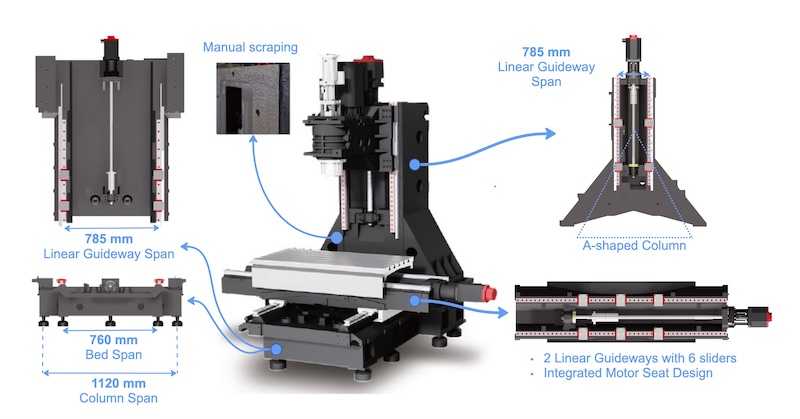

Design & Structural Features
High-Rigidity Casting: The V10MX is engineered with a robust frame cast entirely from high-grade gray iron, providing industry-leading vibration damping and structural mass.
A-Frame Column Design: The column utilizes a precision-mounted herringbone and cross-ribbed "A-shape" geometry, boosting torsional stiffness and minimizing spindle deflection.
Precision Z-Axis Guidance: Centrally mounted spindle head travels on dual high-precision roller linear guides for smooth, accurate vertical movement.
High-Precision Linear Guideway System
Triple-Axis Stability: Heavy-duty guideways on X, Y, Z axes ensure fluid positioning and high-speed rapids.
Repeatable Precision: Maintains tight tolerances over extended production cycles.

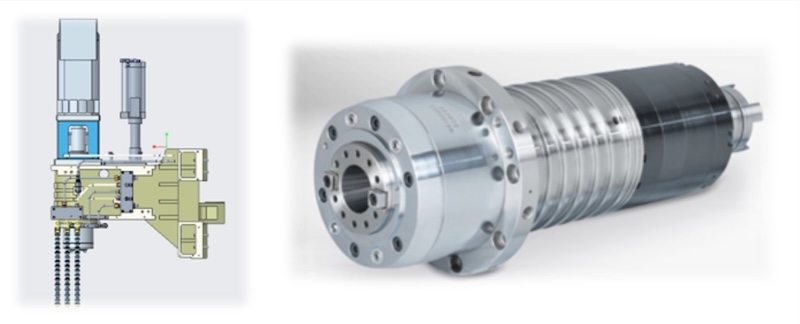

High-Performance 12,000 RPM Direct Drive Spindle
Inline Direct Drive Technology: Eliminates vibration and power loss from belts.
Advanced Thermal Management: Integrated oil cooling system maintains accuracy.

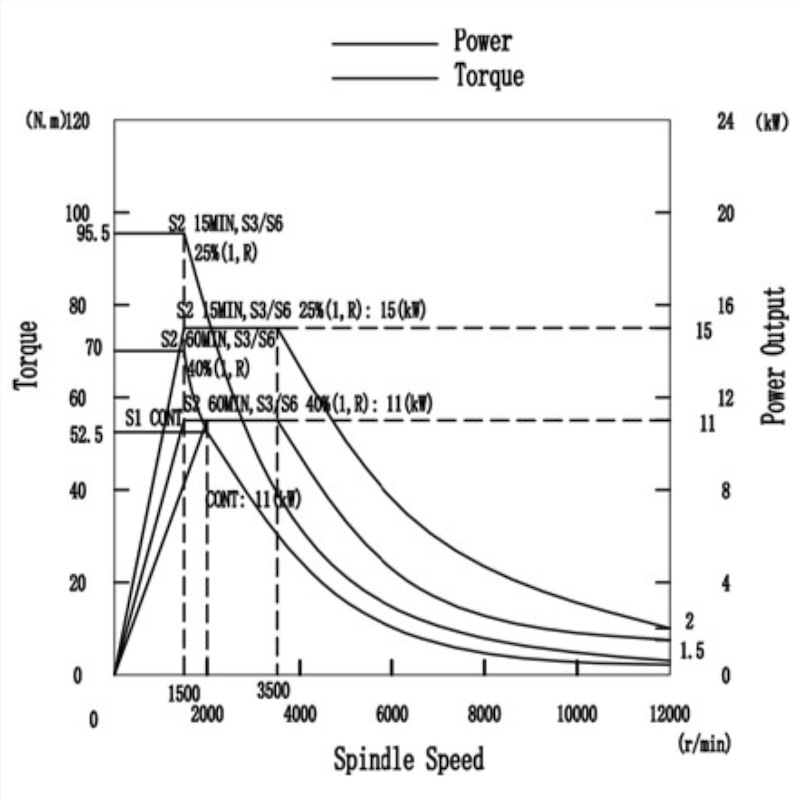

Power & Torque: Peak torque 95.5 Nm (70.4 ft-lbf) for heavy and high-speed machining.

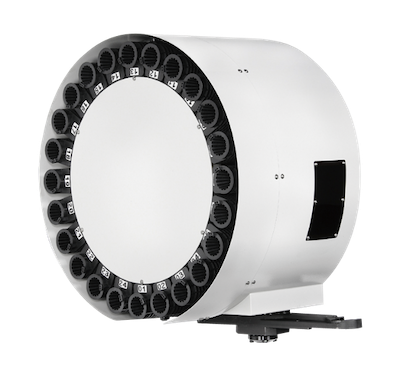

Side-Mount Swing-Arm Automatic Tool Changer (ATC)
Rapid Cam-Driven Indexing: 24+1 station system ensures fast, reliable tool changes.
