Okuma LB35II-M CNC Turning Center (Approx. 2000)

The Okuma LB35II-M is a heavy-duty CNC turning center designed for high-torque metal removal, exceptional rigidity, and long-term thermal stability. Built on massive box ways, the machine delivers excellent vibration dampening and cutting stability compared with many modern linear-guide designs. This makes it particularly suitable for machining difficult materials, large workpieces, and interrupted cuts.

This Okuma LB35II-M (Serial No. 0447, approx. year 2000) is equipped with the reliable Okuma OSP7000L control, a powerful spindle with a 12-inch hydraulic chuck, and a 12-station VDI50 turret with live tooling. The machine allows both heavy turning and secondary milling operations in a single setup.

This particular machine appears to feature a long-bed configuration, providing extended turning capacity compared with the standard LB35II-M configuration.

The machine has been serviced and maintained by CNCmarket.ca during the last two years, ensuring stable operation and readiness for continued production.

Technical Specifications

Manufacturer: Okuma

Model: LB35II-M

Year: Approx. 2000

Serial Number: 0447

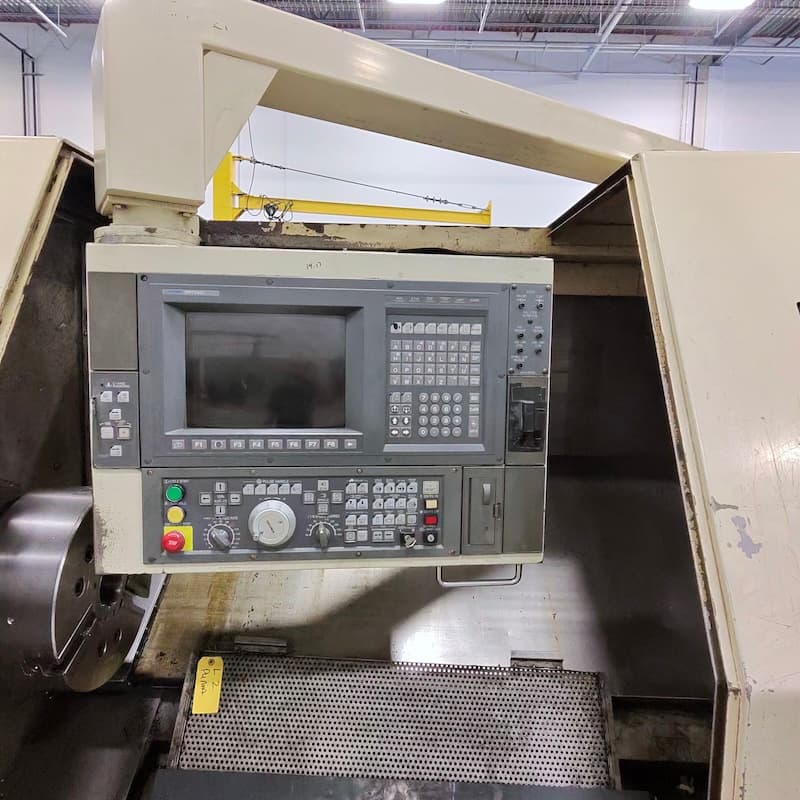

Control System: Okuma OSP7000L

Chuck Size: 305 mm (12") Hydraulic Chuck

Turret: 12-Station VDI50 with Live Tooling

Guideway Type: Box Ways

Spindle Speed: Up to 3,000 RPM (typical configuration)

Main Motor Power: approx. 30 / 37 kW (40 / 50 HP)

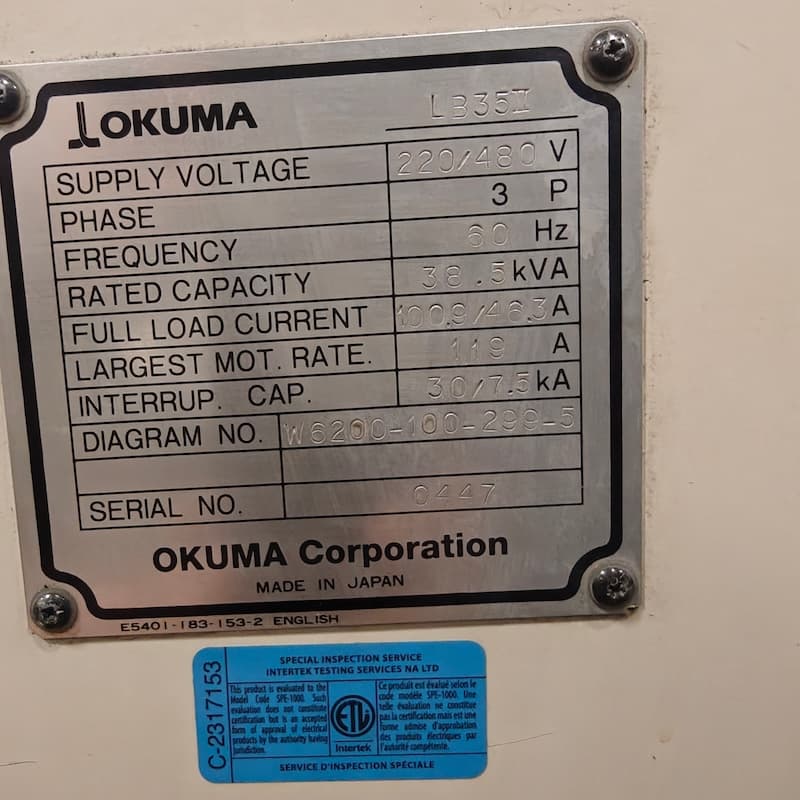

Power Requirement: 220 / 480 V, 3 Phase, 60 Hz

Rated Capacity: 38.5 kVA

Key Machine Advantages

VDI50 Live Tooling enables off-center drilling, tapping, and milling operations directly on the lathe.
Heavy-Duty Box-Way Construction provides superior rigidity and vibration damping for improved surface finish and tool life.
OSP7000L Control is a proven Okuma control system known for reliability and long-term serviceability.
Extended Bed Configuration offers increased turning capacity for longer workpieces.
High-Torque Spindle suitable for machining steel, stainless steel, and difficult alloys.

Note: Specifications are based on typical Okuma LB35II-M configurations and visible machine data. Exact capacity and configuration should be verified during inspection.

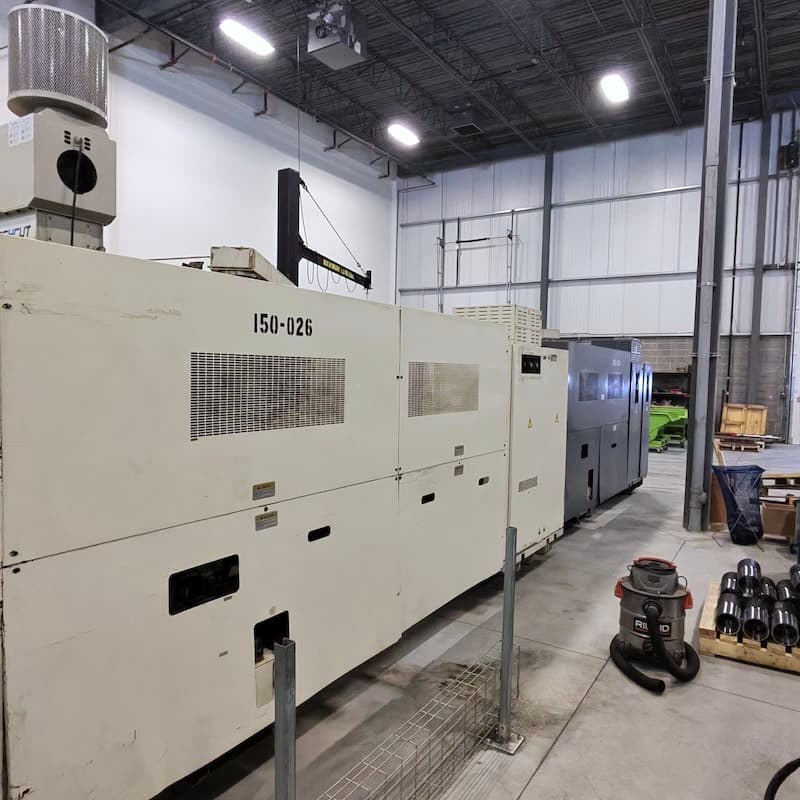

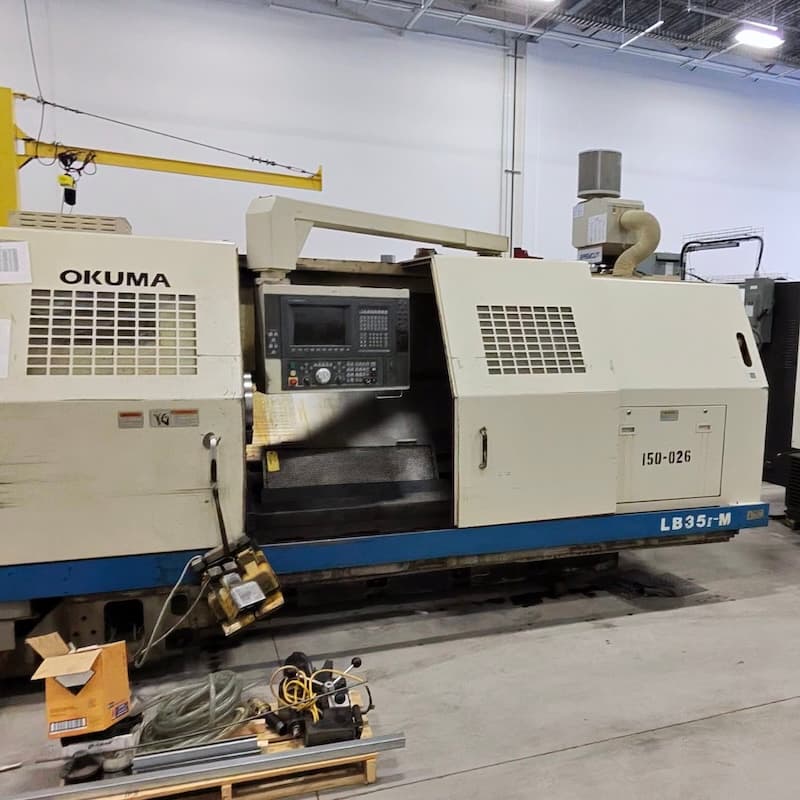

Okuma LB35II-M, year 2000, SN 0447

Okuma LB35II-M, year 2000, SN 0447
