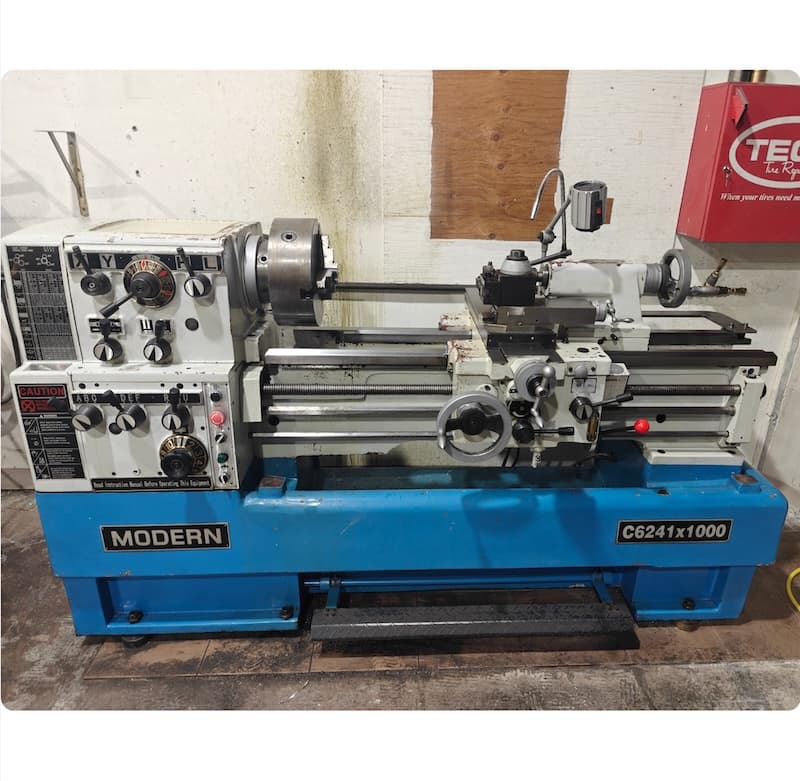

This 2004 Modern C6241X1000 is a Manual Lathe featuring the manual toolpost.
Retail price as of 08.28.2026
The Modern C6241x1000 is a versatile manual engine lathe designed for general-purpose machining, maintenance work, and small-batch production. Known for its solid cast-iron construction and simple mechanical reliability, this type of lathe is widely used in repair shops, toolrooms, and training environments.

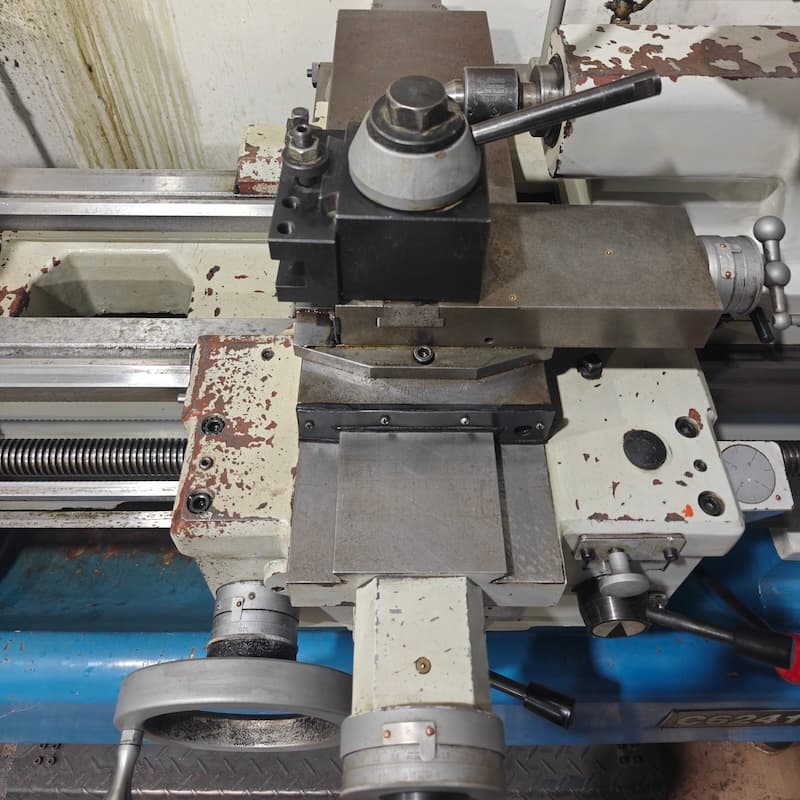

This 2004 Modern C6241x1000 (Serial No. 4202D4) features a 41 cm swing over bed and a 1000 mm distance between centers, providing ample capacity for turning shafts, bushings, and other medium-size workpieces. The machine includes a manual 4-way tool post, manual carriage and cross-slide controls, and a multi-speed geared headstock.

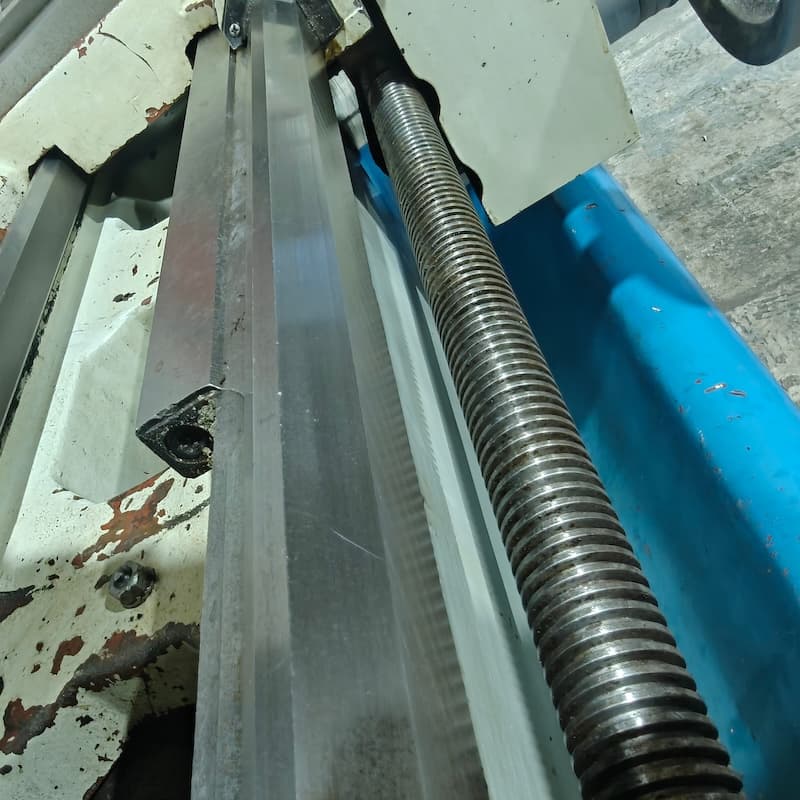

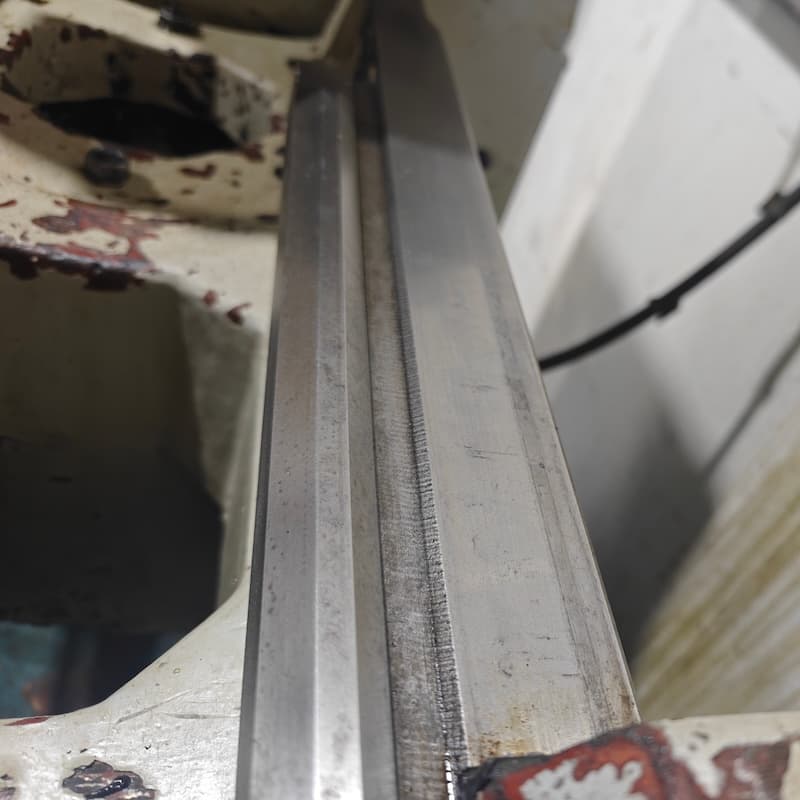

The bedways appear to be in good condition, as shown in the photos, with clean sliding surfaces and minimal visible wear. The machine is equipped with a 3-jaw chuck, tailstock, and standard threading and feed controls.
Manufacturer: Modern Machine Tool Co.
Model: C6241x1000
Year: 2004
Serial Number: 4202D4
Swing Over Bed: approx. 410 mm (16.1")
Swing Over Cross Slide: approx. 250 mm (9.8")
Distance Between Centers: 1000 mm (39")
Spindle Bore: approx. 52 mm (2.05")

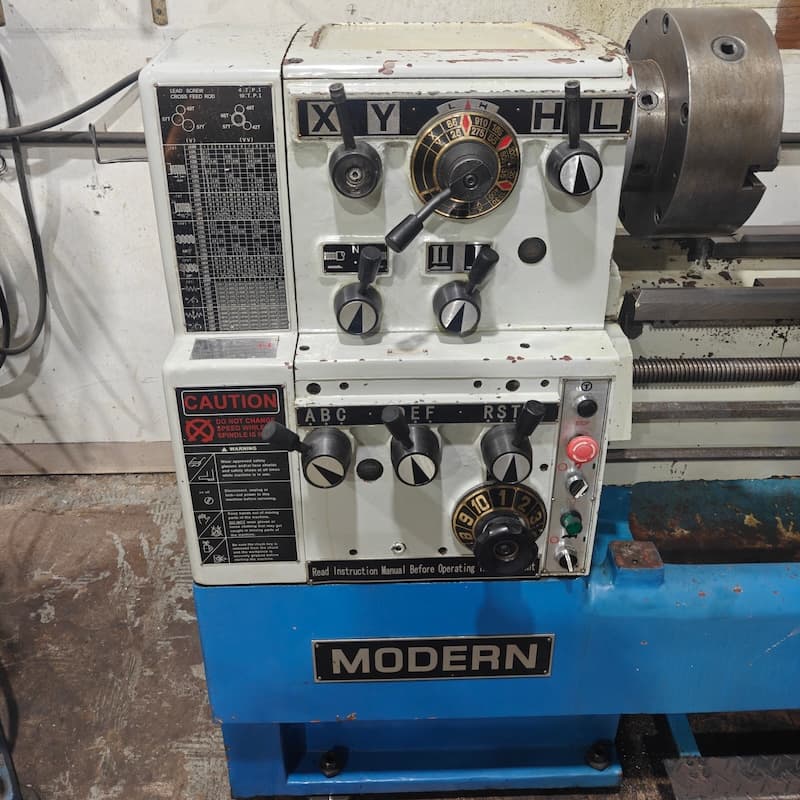

Spindle Speeds: approx. 45 – 1800 RPM (geared head)
Spindle Mount: Camlock-type spindle nose
Motor Power: approx. 5.5 kW (7.5 HP)
Tailstock: Manual tailstock with taper center
Tool Post: 4-Way Manual Tool Post
Note: Specifications are based on typical Modern C6241x1000 configurations and publicly available data. Exact configuration should be verified during inspection.
