Mazak CNC Vertical Machining Center VTC-16B, year 1997, SN 127459

VTC-16B_127459In stock

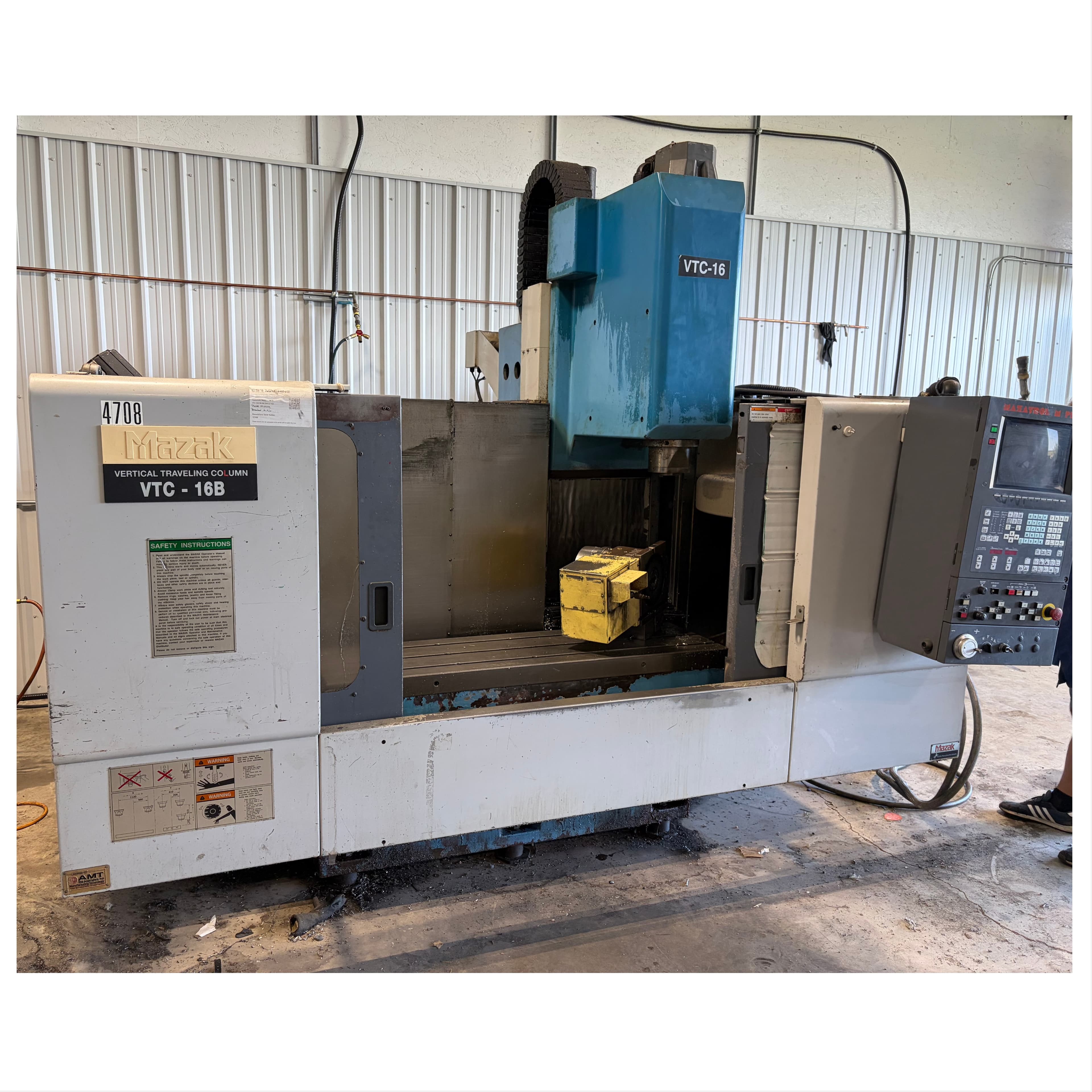

This 1997 Mazak VTC-16B is a rigid traveling-column CNC vertical machining center with the Mazatrol M Plus control and 44" of X travel on a fixed 57" table. CAT-40 spindle at 7,000 RPM, 20-tool ATC, rigid tapping. Built for long parts, fixture rails and multi-part setups. Inspected and serviced by CNCmarket.ca.

From CA$4,799.00 excl. taxes

Retail price as of 08.28.2026

1 pcs.stock Calgary (T2C 1Z6)

Technical Description

Reviews

Traveling-column VMC: the table is fixed and the column carries the spindle along X, so table load does not affect axis dynamics or accuracy. Long X (44") with narrow Y (16") suits rails, plates, shafts, brackets and multi-part fixturing — the operator can load one end of the table while the spindle works at the other. Open front across the full table length for crane loading.

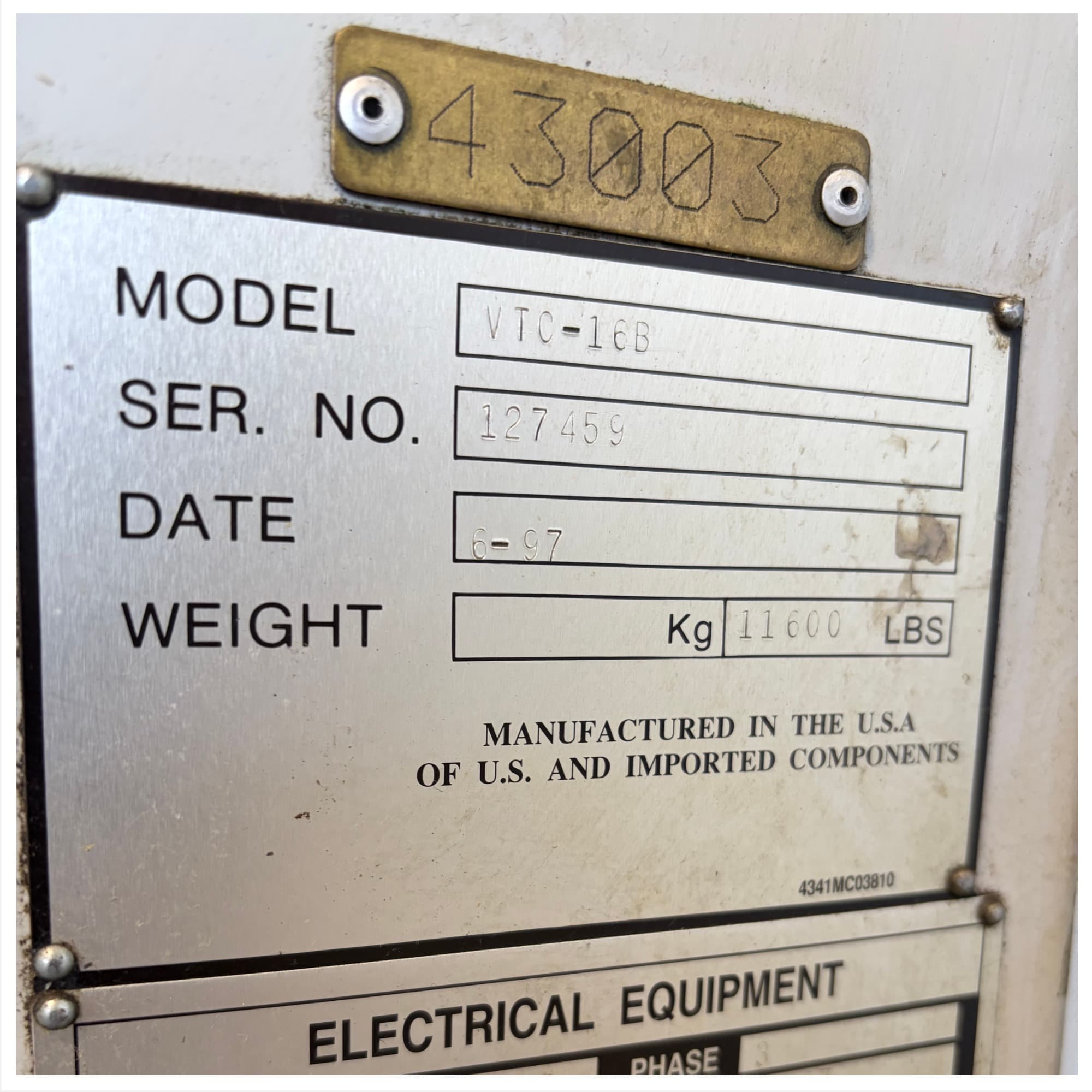

Serial No. 127459, built 6-97. Mazatrol M Plus control: conversational programming and EIA/ISO G-code, graphic verification, rigid tapping. CAT-40 spindle to 7,000 RPM, 15 HP, 20-position ATC. Factory 4th-axis provision — the panel is wired for an A axis; rotary table not included. Chip conveyor included.

Condition: repainted, normal shop wear. Currently disconnected and stored indoors in a heated warehouse, so it is not under power. Inspection on site is welcome. Tooling and workholding shown in the photos are not included in the sale.

Technical Specifications

Equipped With:

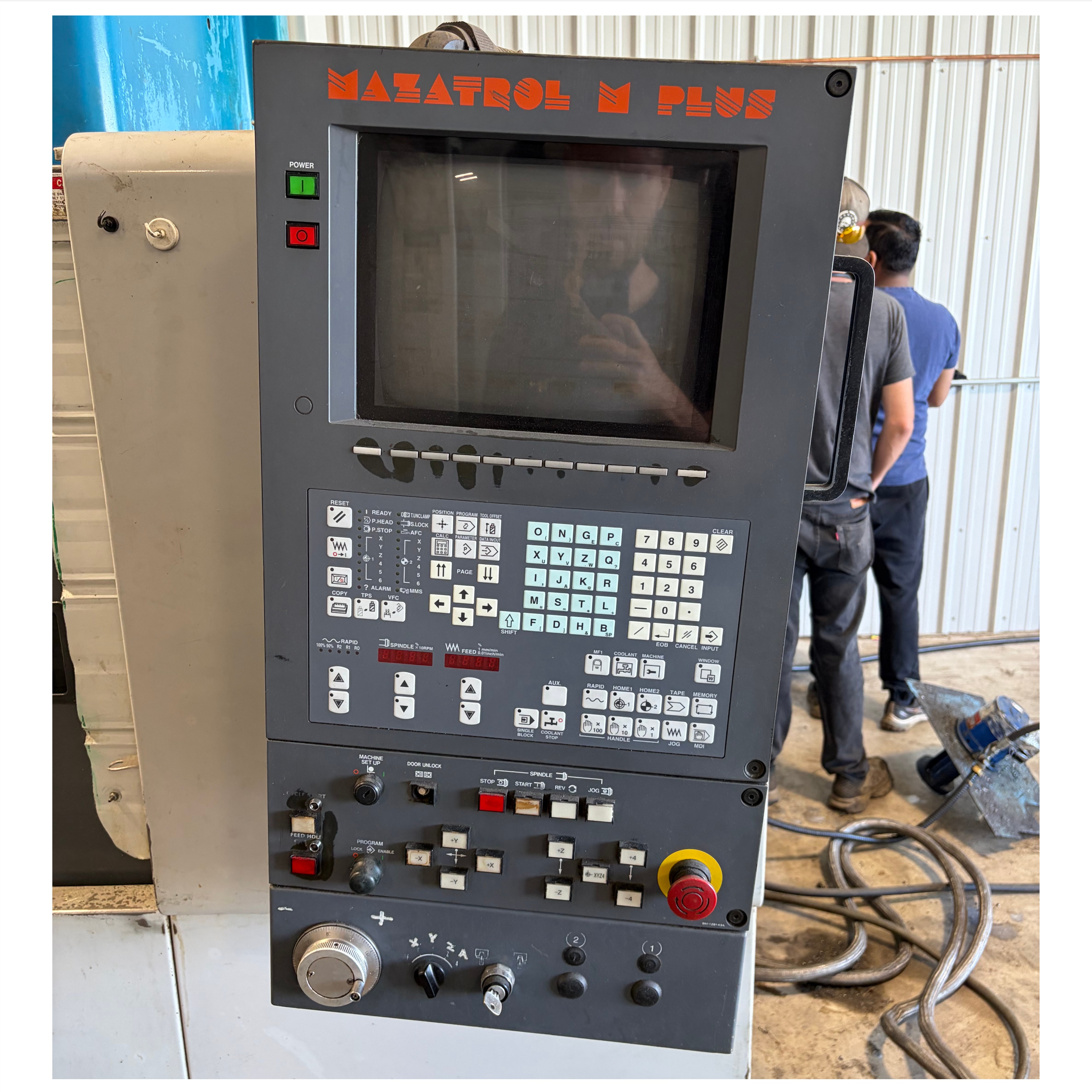

Mazatrol M Plus CNC control, 12" CRT
CAT-40 spindle, 7,000 RPM
20-position automatic tool changer
Rigid tapping
Conversational programming + EIA/ISO (G-code) input
Graphic display / program verification
Flood coolant system
Chip conveyor
4th-axis provision (A-axis selector and ±4 jog keys on the operator panel) — rotary table not included
Sold without tooling, toolholders or workholding

Key Specifications:

Travels (X / Y / Z): 44.1" / 16.1" / 20.1" (1,120 × 410 × 510 mm)
Table size: 57.5" × 16.1" (1,460 × 410 mm), T-slotted
Max table load: approx. 1,120 lbs (508 kg)
Spindle nose to table: 4.3" – 24.4"
Spindle center to column: 22.1"
Spindle taper: CAT-40 (No. 40)
Spindle speed: 7,000 RPM
Spindle motor: 15 HP
ATC: 20 tools — max tool dia. 3.1" (4.3" with adjacent pockets empty), max length 13.8", max weight 17.6 lbs
Rapid traverse: 787 IPM (X/Y), 590 IPM (Z)
Power: 210/230 V, 3-phase, 60 Hz
Machine weight: 11,600 lbs (5,260 kg)
Footprint: approx. 118" × 102" × 106" H
