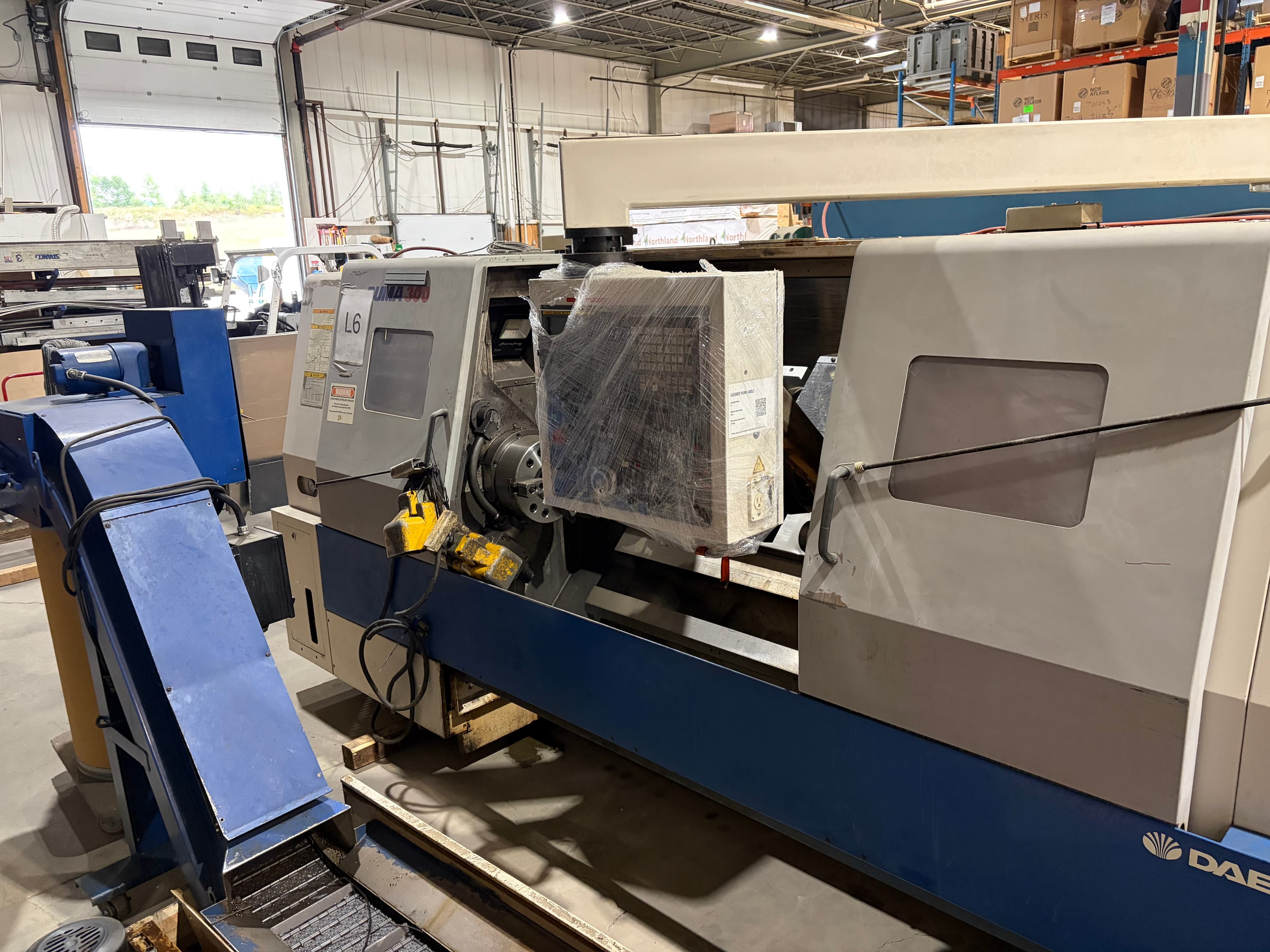

Daewoo CNC Turning Center Puma 300LC, year 2001, SN P25L0325

300LC_P25L0325In stock

2001 Daewoo Puma 300LC big-bore long-bed CNC turning center: Fanuc 18i-T, 4.5" spindle bore, A2-11 nose, 50" turning length, new 12" EASYCUT hydraulic chuck, tailstock, chip conveyor. Sold as-is — spindle gearbox is faulty. Located in Calgary, AB.

1 pcs.stock Calgary (T2C 1Z6)

Technical Description

Reviews

The Puma 300LC is the long-bed, big-bore version of Daewoo's Puma 300 — 50" of turning length with a 4.5" spindle bore and A2-11 nose on a one-piece slant bed. That combination takes long bar, tube and heavy chucked parts that a standard 3"-bore lathe cannot: oilfield, shaft and pipe work in one setup.

Model Puma 300LC, Serial No. P25L0325, built 06/2001 by Daewoo Heavy Industries (Changwon, Korea — the Puma line is now Doosan / DN Solutions). Fanuc Series 18i-T control. 35 HP spindle, 2,800 RPM, A2-11 nose, 4.5" bore. 10-station turret with static tooling — no live tooling, no C axis. Programmable tailstock and chip conveyor. Fitted with a new 12" EASYCUT three-jaw hydraulic chuck (68.9 kN, 3,700 RPM rated), which stays with the machine.

Condition — read before enquiring. The machine powers up and the control comes alive, but it does not run: the spindle gearbox is faulty and needs repair or replacement. It is sold as-is, priced accordingly, and is a candidate for a rebuild or for a shop that wants a big-bore long-bed platform at parts-machine money. Paint and sheet metal are in good shape otherwise. Currently disconnected and located in Calgary, AB; inspection on site is welcome. Tooling and toolholders shown in the photos are not included.

Technical Specifications

Equipped With:

Fanuc Series 18i-T CNC control
New 12" EASYCUT three-jaw hydraulic chuck (68.9 kN max, 3,700 RPM max)
10-station turret — static tooling, no live tooling / no C axis
Programmable tailstock
Chip conveyor
Sold without tooling or toolholders

Key Specifications:

Swing over bed: 22.4" (569 mm)
Max turning diameter: 15.7" (400 mm)
Max turning length: 50.4" (1,280 mm)
Distance between centers: 52.8" (1,340 mm)
Max bar capacity: 4.05" (103 mm)
Spindle speed: 0–2,800 RPM
Spindle motor: 35 HP (22 kW continuous per machine nameplate)
Spindle nose: A2-11
Spindle bore: 4.5" (114 mm)
Travels: X 11.1" (282 mm) / Z 52.4" (1,331 mm)
Rapid traverse: 787 IPM (X), 945 IPM (Z)
Tailstock: MT-4, quill 3.97" dia., 4.7" travel
Power: 200/220 V, 3-phase, 50/60 Hz, 44.43 kVA, 116.5 A FLA
Machine weight: 6,700 kg (14,770 lbs)
Footprint: approx. 150" × 77" × 80" H (168" with chip conveyor)
Location: Calgary, AB
